UK Manufactured Lead Sheet — Rolled to BS EN 12588 Since 1770
Heaps, Arnold & Heaps Ltd, rolled lead sheet and lead-lined boards available from our Rotherham facility for the UK construction, healthcare, nuclear and industrial sectors. All our lead sheet is manufactured to BS EN 12588 specification — the British and European Standard for lead sheet — and supplied with traceability documentation suitable for NHS procurement, conservation work and nuclear compliance archives.
With over 250 years of lead manufacturing experience, we supply lead sheet in all codes (1 through 8) for radiation shielding, roofing, flashing, sound damping, vibration isolation and chemical-resistant lining applications.
Why Buy Lead Sheet from Heaps, Arnold & Heaps?
- UK manufactured at our Rotherham facility — no imports, full traceability
- Produced to BS EN 12588 — the recognised British and European standard
- All codes 1 to 8 available — from 0.45mm to 3.55mm thickness
- Cut to size — supplied in standard rolls or cut to your project specification
- Lead-lined plywood and plasterboard manufactured to order
- Documentation supplied for NHS procurement, CQC inspection and conservation records
- Fast UK-wide delivery on standard codes; bespoke runs in 2–3 weeks
- Over 250 years of casting and rolling expertise — established 1770
Lead Sheet for X-Ray Rooms — Medical Radiation Shielding
Lead sheet for X-ray rooms is the most established and cost-effective shielding material for medical, dental, veterinary and research radiology environments. We supply NHS Trusts, private healthcare providers, dental practices, veterinary surgeries and specialist radiation shielding contractors across the UK.
Lead Sheet Codes for Radiology & Diagnostic Imaging

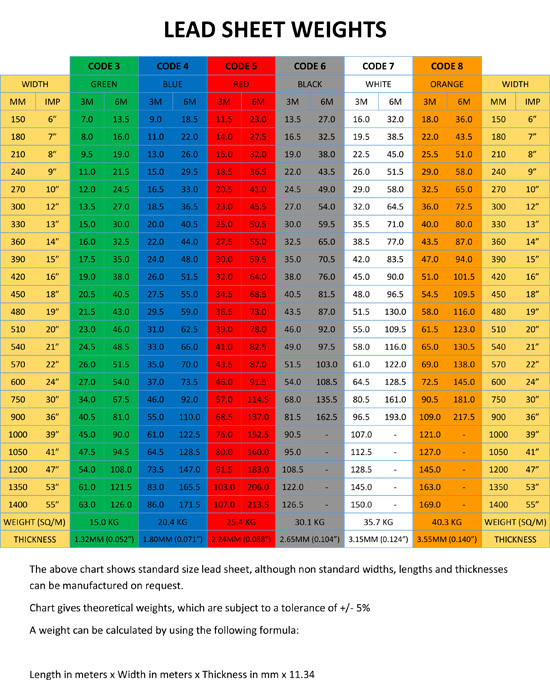

Lead sheet for X-ray shielding is specified by code, which determines thickness and weight per square meter:
- Code 3 (1.32mm) — Dental practices and lower-energy diagnostic environments
- Code 4 (1.80mm) — General diagnostic X-ray rooms, the most commonly specified code
- Code 5 (2.24mm) — Higher-output radiology suites and busy diagnostic departments
- Code 6 (2.65mm) — CT scanner rooms, fluoroscopy and higher-energy environments
- Code 7 (3.15mm) — Cath labs, interventional radiology and high-workload installations
- Code 8 (3.55mm) — Specialist applications requiring maximum attenuation
Your radiation protection adviser (RPA) will specify the exact code required based on the equipment’s energy output, expected workload, occupancy of adjacent areas and any directional shielding requirements. We supply all codes to BS EN 12588 and provide documentation of UK manufacture suitable for NHS procurement compliance and CQC inspection records.
Common X-Ray Room Applications
- NHS hospital X-ray departments and radiology suites
- Private diagnostic imaging clinics
- CT and fluoroscopy room construction
- Dental practices with on-site X-ray equipment
- Veterinary X-ray rooms
- Mobile X-ray unit installations
- Cath labs and interventional radiology suites
- Mammography and breast screening rooms
Radiation Shielding Materials UK — Full Product Range
Beyond standard lead sheet, we manufacture and supply a comprehensive range of radiation shielding materials UK-wide for medical, dental, veterinary, research and industrial radiography applications:

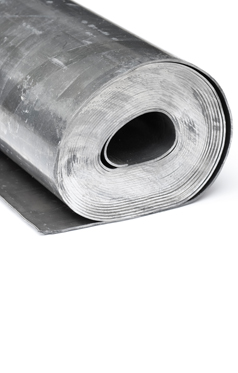

Lead Sheet

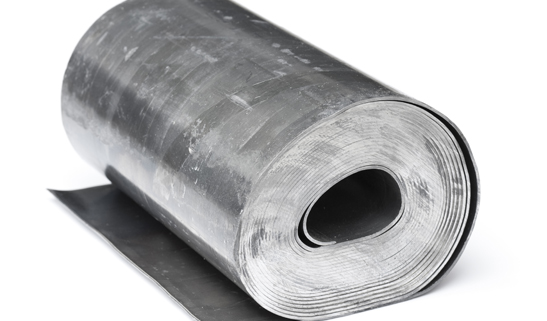

Rolled lead sheet in all codes for wall, ceiling and floor shielding. Available in standard 1200mm and 2400mm width rolls in various lengths, or cut to your project specification with minimal waste.
Lead-Lined Plywood
Pre-bonded lead-lined plywood combines structural strength with shielding function. The lead sheet is bonded to the plywood substrate at our facility using construction-grade adhesives. Available in standard 8′ × 4′ sheets in your specified lead code thickness, ready for installation into stud walls, ceilings and partitions.
Lead-Lined Plasterboard
Lead-lined plasterboard provides combined structural, finishing and shielding function in a single product. We supply lead-lined boards bonded to your specification thickness — typical builds use 12.5mm plasterboard with Code 3, 4 or 5 lead sheet bonded to the back face.
Lead Strip & Lead Wool
Lead strip and lead wool seal the gaps that lead sheet installation inevitably leaves at joints, edges and service penetrations. Without proper sealing of these gaps, a shielded room’s effectiveness can be significantly compromised during the post-installation radiation survey.
Custom Cut Lead Components
For complex installations, we can cut lead sheet to bespoke patterns, drill or punch holes for service penetrations, and supply pre-formed corner pieces. This dramatically reduces installation time and cutting waste on site.
Lead Lined Wall Protection — Construction & Refurbishment
Lead lined wall protection is the foundation of any shielded medical, dental or veterinary room. Lead sheet bonded to construction substrates (typically plywood backing boards or directly to plasterboard) creates a continuous shielding barrier that, when properly installed and sealed, attenuates radiation to safe levels in occupied areas beyond the wall.
What We Supply for Lead Lined Walls
- Code 1–8 lead sheet to BS EN 12588 for direct application
- Pre-bonded lead-lined plywood for ease of installation
- Lead-lined plasterboard for direct stud-wall integration
- Lead strip for sealing joints between sheets
- Lead wool for sealing service penetrations
- Lead-lined door frame components
- Lead-lined viewing window frames and glazing supports
Working with Your Specialist Installers
We supply the materials; specialist radiation shielding contractors carry out the installation, sealing and post-installation survey work. We work directly with several of the UK’s leading shielding installation contractors and can recommend installers in your region if needed.
All our shielding materials are dispatched with documentation suitable for inclusion in the project’s compliance pack and for archiving alongside the post-installation radiation survey.
Bespoke Shielding Fabrication
Standard lead sheet doesn’t always fit the requirement. For complex geometries, equipment-specific components or one-off architectural features, we offer full bespoke shielding fabrication services at our Rotherham facility.
Typical Bespoke Fabrication Projects
- Pre-formed lead sheet — curved, folded or pre-pressed for cylindrical and architectural applications
- Lead-lined cabinets and enclosures for waste storage or source containment
- Lead-lined transport containers for radioactive sample handling
- Replacement parts for ageing shielded equipment where original parts are unavailable
- One-off architectural features requiring lead integration (e.g. shielded observation windows)
- Cut-and-drilled lead sheet kits for repeat installations
How Bespoke Orders Work
- Send us drawings, samples, or a clear description of what you need
- We review feasibility and provide a quote with lead time (typically 2–4 weeks for bespoke work)
- On approval we manufacture, inspect and dispatch
- Documentation supplied for compliance archiving

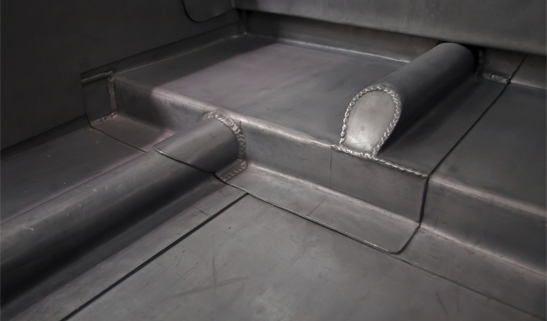

Lead Sheet for Construction & Roofing
Beyond radiation shielding, rolled lead sheet remains a primary material in UK construction for:
- Roof flashings at chimneys, abutments and parapets
- Soakers and gutters in heritage roofing applications
- Bay roofs and dormer cladding
- Listed building restoration where matching original materials is required
- Sound damping panels for acoustic applications
- Vibration isolation mountings in industrial installations
- Chemical-resistant linings for tanks and process equipment
All our construction lead sheet is rolled to BS EN 12588 with consistent thickness across the roll — critical for installers working to tight tolerances on heritage and conservation work.
Who We Supply
Our lead sheet and lead-lined boards are used across UK industry:
- NHS Trusts — for new builds, refurbishments and equipment upgrades
- Private healthcare groups running diagnostic imaging facilities
- Specialist radiation shielding contractors as a trade materials supplier
- Dental practice fit-out specialists
- Veterinary practice contractors
- Modular building manufacturers producing mobile X-ray units
- Roofing contractors working on heritage and conservation projects
- Listed building restoration specialists
- University research facilities with radiation-using laboratories
- Industrial radiography service providers
- Builders’ merchants stocking lead sheet for general trade sale
Compliance, Documentation & UK Manufacture
Lead sheet specification — particularly for healthcare applications — is compliance-led. All our lead sheet is:
- Manufactured in the UK
- Manufactured to BS EN 12588 (lead sheet specification)
- Documented for traceability — origin, batch and material composition
- Supplied with paperwork suitable for NHS procurement compliance
- Suitable for inclusion in CQC inspection records and conservation case files
For procurement teams, working with a UK manufacturer simplifies due diligence: short supply chain, verifiable origin, no offshore manufacturing risks, and direct UK-based support if questions arise during inspection or post-installation survey.
How to Order Lead Sheet
Lead sheet orders are processed on a quote-led basis to ensure your exact specifications are met. The fastest way to get started:
- Submit a quote request with your code, dimensions, quantity and any cutting or bonding requirements
- We respond within 1 working day with availability, pricing and lead time
- Once approved, your order is rolled, cut, bonded (if applicable) and dispatched on agreed terms
For trade accounts and ongoing supply arrangements, contact our team directly to discuss credit terms and BACS payment.
