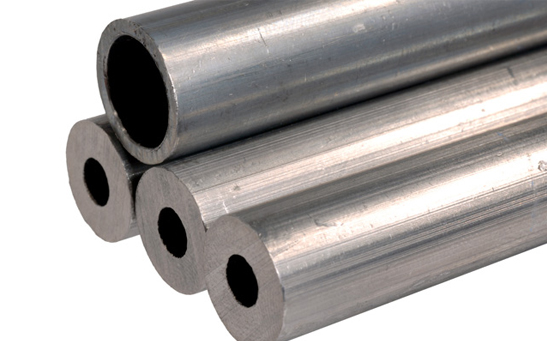

UK Manufactured Lead Tubes, Sleeves & Pipes
Heaps, Arnold & Heaps Ltd manufactures lead tubes, sleeves and pipes at our Rotherham facility for an unusually diverse range of UK and international applications — from heritage plumbing restoration and traditional rainwater systems through to cable sheathing, pipe organ building and radiation protection. With over 250 years of lead manufacturing experience, we supply tubes and pipes in internal diameters from 6mm up to 200mm+, with wall thicknesses from 1mm to 10mm, in round, square, rectangular and fully bespoke cross-sections.
Lead’s combination of corrosion resistance, malleability, density and acoustic properties makes it the right material for applications where modern alternatives genuinely don’t perform — particularly in heritage conservation, specialist acoustic instruments and radiation shielding.
Why Choose Heaps, Arnold & Heaps Lead Tubes & Pipes?
- UK manufactured at our Rotherham facility — full traceability
- Wide diameter range — 6mm internal up to 200mm+ from a single supplier
- Wall thicknesses 1mm to 10mm as standard
- Multiple cross-sections — round, square, rectangular and bespoke profiles
- Pure refined lead, antimonial lead and tin/lead alloys
- Heritage and conservation expertise — supply to Listed building specialists
- Documentation supplied for nuclear, medical and conservation procurement
- Over 250 years of expertise — established 1770
Dimensions & Cross-Sections
Internal Diameters
- 6mm – 25mm internal — fine bore tubes for cable sheathing, organ building and small-bore applications
- 25mm – 75mm internal — general purpose for plumbing, rainwater and cable applications
- 75mm – 200mm internal — heavy-section pipes for rainwater systems, structural penetrations and shielding
- 200mm+ internal — bespoke heavy-section tubes for industrial and shielding applications
Wall Thicknesses
- 1mm – 3mm — light wall for cable sheathing and organ tubes
- 3mm – 6mm — standard wall for plumbing and rainwater systems
- 6mm – 10mm — heavy wall for radiation protection and structural pipework
- Custom wall thicknesses manufactured to specification
Cross-Section Profiles
- Round — the standard for plumbing, cable and rainwater applications
- Square — for architectural rainwater and decorative applications
- Rectangular — for bespoke architectural and shielding installations
- Bespoke cross-sections extruded or cast to drawing
Lead Tube & Pipe Applications
Heritage Plumbing & Listed Building Restoration
Although lead is restricted for new potable water installations under current UK Water Supply Regulations, lead pipes remain a legitimate and often required specification for heritage and Listed building restoration work, including:
- Like-for-like replacement of original lead pipework in Grade I and Grade II Listed buildings
- Non-potable supply runs — rainwater, condensate, soil and waste applications
- Restoration of original plumbing arrangements specified by conservation officers
- Repair of damaged sections of historic lead pipework
- Museum and heritage display installations
We supply lead plumbing pipe to traditional dimensions matched to original pipework, with documentation suitable for conservation officer sign-off. For traditional tinmans and blowpipe solders and plumbing solders used to joint and repair lead pipework, see the related products.
Lead Rainwater Systems & Heritage Downpipes
Lead rainwater systems remain the specification of choice for high-end heritage properties, cathedral and church works, and conservation projects where the original drainage system was lead. Cast and extruded lead downpipes, hopper heads and gutter linings are produced to traditional patterns:
- Lead downpipes in round and square cross-sections
- Lead rainwater hoppers cast or fabricated to traditional patterns
- Lead gutter linings for parapet and box gutter installations (see also our lead sheet for traditional gutter applications)
- Architectural lead pipework for visible exterior installations
- Repair sections matched to existing rainwater systems
Supplied to cathedral works departments, heritage estate maintenance teams, National Trust and English Heritage contractors, and specialist roofing and rainwater contractors.
Cable Sheathing & Splice Sleeves
Lead sheathing remains in use for repair and maintenance of legacy lead-sheathed cables across the UK electricity distribution network, communications infrastructure and industrial installations. We supply:
- Lead splice sleeves for jointing and repair of lead-sheathed power and telecommunications cables
- Lead tubes for cable repair kits matched to original cable dimensions
- Replacement lead sheathing for legacy MV/HV cable installations
- Lead sleeves for industrial cable protection in harsh environments
Supplied to cable jointing contractors, electricity distribution network operators (DNOs), telecommunications maintenance teams and industrial cable specialists.
Pipe Organ Building
Lead and lead/tin alloys have been the traditional material for pipe organ pipes for over a thousand years — the metal’s combination of malleability, acoustic damping and corrosion resistance gives organ pipes their characteristic tonal quality. We supply lead tubes and metal stock to UK and international pipe organ builders for:
- Flue pipe tubes in pure lead and lead/tin compositions
- Reed pipe stock at customer-specified alloy ratios
- Restoration and re-voicing of historic pipe organs
- New cathedral, church and concert hall organ builds
- Bespoke alloy compositions — pure lead, 30% tin, 50% tin or other ratios to organ builder specification
Supplied to UK organ building workshops, restoration specialists and international organ builders sourcing UK-manufactured lead and lead alloy stock.

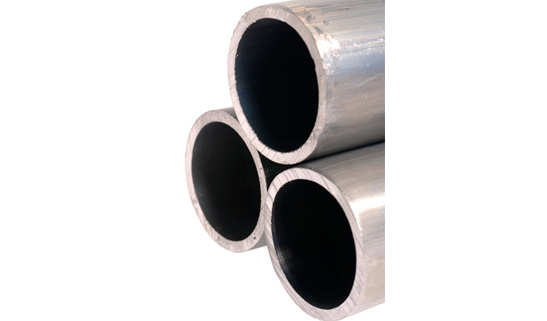

Radiation Protection & Shielded Pipework
Lead tubes and pipes are used as primary shielding for radioactive source transport pipework, beam line installations, nuclear pipe penetrations and medical radiotherapy installations. Where standard lead shielding bricks cannot enclose curved or piped equipment, lead tube provides continuous shielding around the pipework itself:
- Source transport line shielding
- Pipe penetration shielding through shielded walls
- Beam line collimator components
- Isotope handling pipework shielding (see also our isotope pots)
- Industrial radiography shielded pipework
Supplied to medical physics departments, nuclear maintenance contractors, research facilities and industrial radiography specialists. See our medical radiation shielding and nuclear applications industry overviews.
Other Specialist Applications
- Acoustic damping pipework in industrial installations
- Chemical-resistant pipework for specialist process applications
- Marine and offshore pipework where corrosion resistance is critical
- Laboratory and research equipment installations
Bespoke Lead Tubes, Sleeves & Pipes
For applications outside our standard diameter, wall thickness and cross-section ranges, we manufacture bespoke lead tubes at our Rotherham facility:
- Custom internal and external diameters extruded to specification
- Custom wall thicknesses for specific weight, shielding or strength requirements
- Bespoke cross-section profiles — oval, D-section, custom geometric shapes
- Custom alloy compositions — pure lead, antimonial lead, tin/lead alloys, custom blends
- Pre-cut lengths matched to installation requirements
- Replacement sections matched to existing historic pipework dimensions
How Bespoke Orders Work
- Send drawings, samples, or a clear specification of dimensions and alloy
- We review feasibility and provide a quote with lead time (typically 2–4 weeks for bespoke)
- On approval we extrude or cast, inspect and dispatch with documentation
Who We Supply
Our lead tubes, sleeves and pipes are used across UK and international heritage, utilities, music and shielding sectors:
- Heritage and Listed building contractors
- Cathedral works departments and church maintenance teams
- National Trust and English Heritage contractors
- Specialist heritage plumbers
- Traditional rainwater system installers
- Roofing and conservation contractors
- Cable jointing contractors servicing the UK electricity and telecoms networks
- Electricity distribution network operators (DNOs)
- Pipe organ builders — UK and international
- NHS Trusts and medical physics departments
- Nuclear maintenance and decommissioning specialists
- Industrial radiography providers
- University research facilities
Material Quality & Documentation
For sectors where lead provenance and composition matter — heritage conservation, nuclear, medical, telecommunications — full documentation is supplied with every order:
- Manufactured at our UK facility from refined lead
- Pure lead, antimonial lead or tin/lead alloy compositions to specification
- Consistent dimensional tolerance across each length
- Supplied with certificates of conformity stating composition
- Documentation suitable for conservation officer sign-off, CQC records and nuclear compliance files
See our accreditations and compliance page for full details.
How to Order Lead Tubes, Sleeves & Pipes
All lead tube and pipe orders are processed on a quote-led basis to confirm exact dimensions, wall thickness, alloy and quantity:
- Submit a quote request with internal diameter, wall thickness, length, cross-section, alloy specification and intended application
- We respond within 1 working day with availability, pricing and lead time
- Once approved, your order is manufactured, inspected and dispatched with documentation
For trade accounts and ongoing supply arrangements with heritage contractors, cable jointers and organ builders, contact our team directly to discuss credit terms, volume pricing and BACS payment.
